CON Premium

  • Smart control unit with backlit LCD
  • German made, elegant design
  • Greater energy savings due to 7-day timer and open window detection
  • Quiet, even temperature distribution
  • Self-learning function: Learns when you use the heater, and automatically turns on to pre-heat
  • Frost and overheating protection features
Ask Quick Question

Product Overview

CON Premium - Heating With Style

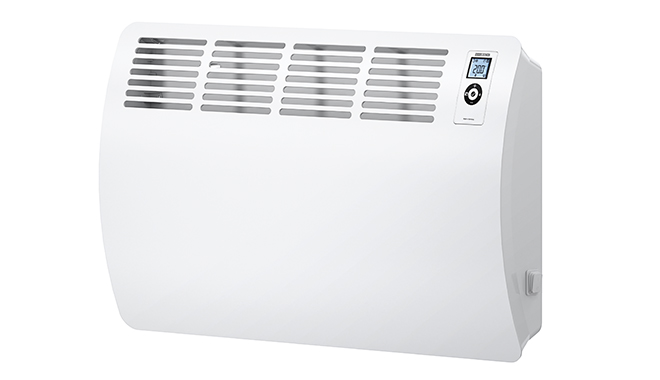

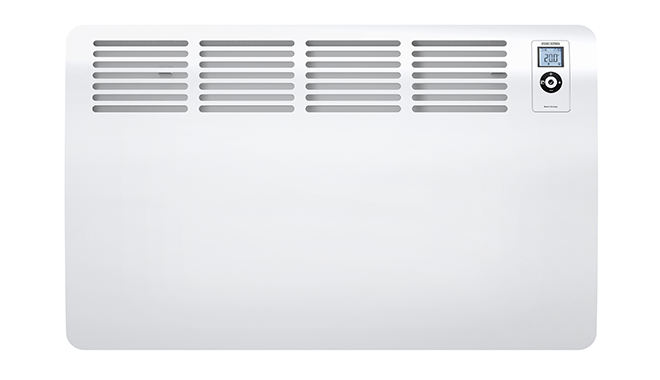

The CON Premium convection wall heaters offer a unique combination of functionality and aesthetics. The CON Premium enhances its environment not only by providing pleasant heat but also through its elegant design. Featuring a smart control unit, the CON Premium range of room heaters have smart features including a 7-day timer, open window detection and frost / overheat protection.

Available at:
Or your local plumbing/electrical supply store.

Product Details

APPLICATION

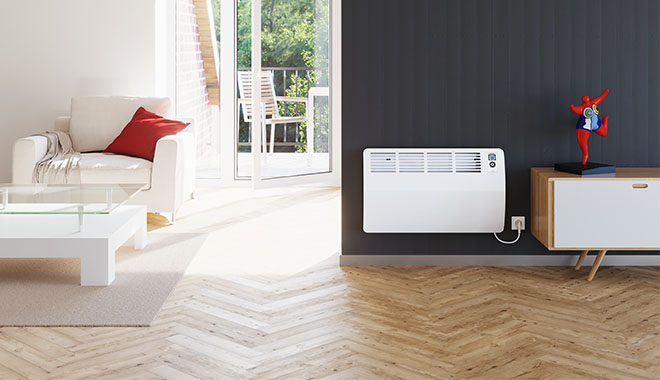

This high quality, wall mounted convector can be used as a standalone heater, as an efficient interim heater, for the living space, bathroom or in workrooms. By its contemporary design, the CON premium is a winner of the Red Dot Design Award.

EQUIPMENT/CONVENIENCE

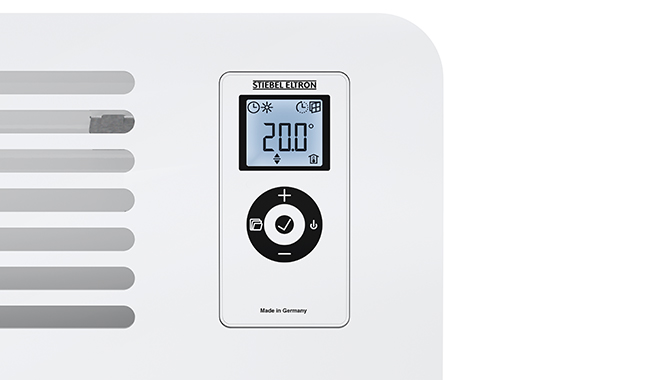

Electronically controlled Premium convector heater with easy to read display and simple programming for silent and accurate heating of the indoor air. The required room temperature can be adjusted on the programming unit from +5 to +30 °C in 0.5 °C increments. Programmable weekly timer with two presets, with adaptive control as a learning function for achieving the comfort temperature in timer. Includes selectable window open detection function, frost protection at 7 °C, and Omnipolar ON/OFF switch. Very user friendly due to top-mounted user interface and large, easy to read display. Adjustable childproofing to prevent unintentional or unauthorised adjustments.

INSTALLATION/SERVICE
The wall mounting bracket is fitted to the wall separately from the appliance and can be readjusted later. All that remains is to hook the heater into place. The appliance has an approx. 1 m power cable with right angle plug. A cable compartment is located at the back.

CON 10-20 Premium
The appliance is delivered with a 3 pin plug, plugs into a power point.

CON 30 Premium
Must be hardwired and connected by a licenced electrician.

SAFETY
Integral safety temperature limiter.

Technical Data

Model number CON 10
Premium
CON 15
Premium
CON 20
Premium
CON 30
Premium
Output 1.0kW 1.5kW 2.0kW 3.0kW
Current 4.3A 6.5A 8.7A 13A
Connection 1/N/PE ~ 230V
Temperature adjustment 5 – 30 °C
IP rating IP24
Width 470mm 625mm 780mm 1090mm
Height 470mm 470mm 470mm 470mm
Depth 126mm 126mm 126mm 126mm
Weight 5.9kg 7.5kg 9.3kg 12.6kg
Installation Wall mounted
Colour Alpine white

Downloads

File Category Type Download
CON Premium DatasheetData SheetPDF
933.81 kB
CNS Trend Operation and Installation GuideOperation and Installation GuidePDF
2.10 MB
Hand Dryers and Space Heaters WarrantyWarrantyPDF
260.99 kB
CON Premium Dimension DrawingTechnical DrawingPNG
74.35 kB

FAQ

1. How many sizes are available in the CON Premium convection wall mounted panel heater?

There are 4 available sizes: 1kW, 1.5kW, 2.0kW and up to 3kW.

3. Can the CON Premium heater have castors on it?

No, the CON Premium is only designed for wall mounted applications.

4. Does the CON Premium have a fan?

No, the CON Premium heats the room via natural circulation. The CON Premium is a convection panel heater.
