HMS Trend
This product is no longer available
You can still access product information and downloads from this page.
View More Heat Pump Accessories Products
- High level of integration allows for time-saving installation of heating components.
- Simple connection to the heat pump via water pipes.
- Excellent thermal insulation for both heating and cooling, with the main body made of expanded polypropylene (EPP).
Product Overview

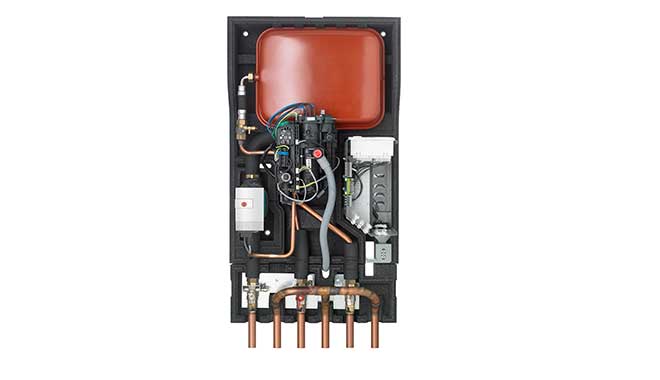

The hydraulic module simplifies the integration of air source heat pumps into the system hydraulics. It comes equipped with an appliance cover that has a high-quality paint finish, allowing for the installation of many components at once. The following components are integrated as standard: the heat pump manager, high-efficiency heating circuit pump for heating and DHW, safety valve, expansion vessel, and emergency/auxiliary heater. Additionally, an optional insulated connector block can be used to further simplify installation and reduce installation time.
Product Details

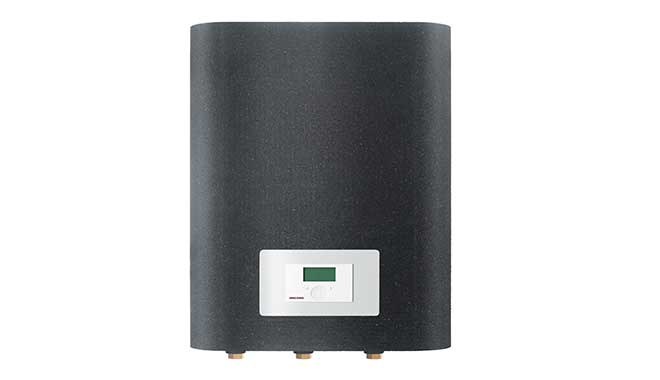

Application This hydraulic module is suitable for simplifying the hydraulic connection of mono-block heat pumps to the heating system. The appliance is designed for use in heating or cooling family houses. The insulated, black EPP casing is mounted on the wall in the installation room to save space.
Convenience features The integral heat pump manager provides fully automatic, weather-compensated control of the heating system. When combined with the optional Internet Service Gateway, the system can be controlled within the home network or with a mobile device. The system includes integral heat and electricity metering via refrigerant circuit data and has a high level of integration. This includes a high-efficiency circulation pump and an expansion vessel for the heating circuit, as well as the electric emergency/auxiliary heater for mono energetic operation and pasteurisation. The heating diverter valve for DHW heating and a safety valve with a drain pipe are also integrated.
Technical Data
| External available pressure differential at 1.0 m³/h: | 715 hPa |
| External available pressure differential at 1.5 m³/h: | 661 hPa |
| External available pressure differential at 2 m³/h: | 468 hPa |
| External available pressure differential at 2.5 m³/h: | 300 hPa |
| Rated voltage, control unit | 230 V/td> |
| Rated voltage, emergency/auxiliary heater | 230 V |
| Power consumption, emergency/auxiliary heater | 5.90 kW |
| Application | Heat pump systems |
| Height | 896 mm |
| Height incl. connector block | 1131 mm |
| Width | 590 mm |
| Depth | 405 mm |
| Weight | 27 kg |
| Connection | G 1 |
