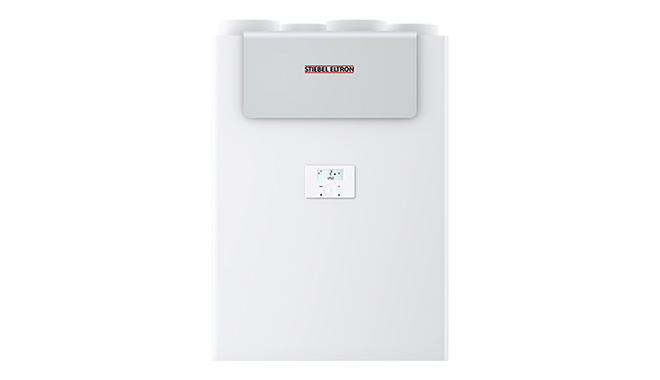

LWZ 180 / LWZ 280

  • Heat recovery up to 94%
  • Centralised ventilation for optimum air quality
  • Air flow rates 60 - 350 m3/h
  • Made in Germany
  • Passive House Institute certified component
  • Easy filter change
  • Inbuilt display allows control of the appliance directly from the unit
  • Helps prevent condensation and mould through improved ventilation
  • Summer bypass function
  • Significantly reduced ventilation noise levels
  • Optional FEB remote control with CO2 sensor
Shop Replacement Filters Ask Quick Question

Product Overview

Passsive House Certified Component
Passive House Certified Component

This appliance has been independently tested and certified by the Passive House Institute.

Create a pleasant indoor environment in the home with the exclusive LWZ 180 and LWZ 280 ventilation units.
Both the LWZ 180 and LWZ 280 heat recovery ventilation units are highly efficient, offering heat recovery levels of up to 94% through an optimised cross-flow heat exchanger. This makes the LWZ 180 / 280 range of ventilation units an excellent choice for apartments, houses and small commercial properties.

Available at:

Product Details

Central ventilation unit with heat recovery for ventilating detached houses and small commercial properties.

Contemporary design with ergonomic programming unit and separate filter cover panel; can be used for detached houses and large apartments. Integral controller with multifunction display and seven-day program; can also be used as a remote control. Highly efficient backwards-curved fans with constant flow rate control. Highly efficient cross-countercurrent heat exchanger. Electric preheater in the form of a high performance heating coil. Bypass damper in supply air line; integral humidity sensor in extract air line. Straightforward filter replacement using combi filter cassettes. Fine dust filter available as accessory.

Backwards-curved, constant flow rate fans with flow rate control ensure a balanced air flow, thereby promoting efficient operation.

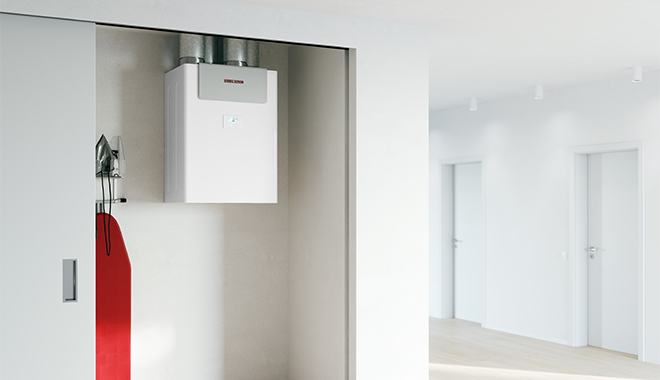

Installation in dwellings, utility rooms, basement rooms, etc. The air connections are located at the top of the unit; easy access to the electrical connection panel without having to open the unit; duplex sheet steel casing; visible surface in alpine white with powder coated finish.

Technical Data

Model number LWZ 180 LWZ 280
Heat recovery Up to 94 % Up to 94 %
Power consumption 65 W (fan max.) 130 W (fan max.)
Rated voltage 230 V 230 V
Air volume flow 60 - 250 m3/h 60 - 350 m3/h
Filter class ePM10 ≥ 50 % (M5) | ISO
Coarse > 60 % (G4)
ePM10 ≥ 50 % (M5) | ISO
Coarse > 60 % (G4)
Air duct connection 160 mm 160 mm
Sound power level (EN 12102) 43 dB(A) 48 dB(A)
Depth 534 mm 534 mm
Width 690 mm 690 mm
Height 997 mm 997 mm
Weight 78 kg 78 kg

Downloads

File Category Type Download
LWZ 180 / 280 Data SheetData SheetPDF
760.21 kB
LWZ 180 / 280 Operation and Installation GuideOperation and Installation GuidePDF
5.21 MB
LWZ 180.280.130 Initial Setup GuideOperation and Installation GuidePDF
404.37 kB
LWZ 180.280.130 Quick Start GuideOperation and Installation GuidePDF
196.10 kB
Heat Recovery Ventilation WarrantyWarrantyPDF
124.48 kB
Certified Passive House Component - LWZ 180CertificatePDF
169.70 kB
Certified Passive House Component - LWZ 180 Enthalpie CertificatePDF
172.61 kB
Certified Passive House Component - LWZ 280CertificatePDF
169.54 kB
Certified Passive House Component - LWZ 280 Enthalpie CertificatePDF
172.46 kB
Condensate drain connectionTechnical DrawingPDF
102.62 kB
LWZ 180 Line DrawingTechnical DrawingPNG
350.60 kB
LWZ 180 Minimum SpaceTechnical DrawingPNG
87.89 kB
LWZ 280 Line DrawingTechnical DrawingPNG
350.60 kB
LWZ 280 Minimum SpaceTechnical DrawingPNG
87.89 kB
LWZ 180 Exploded DiagramExploded DiagramPNG
90.84 kB
LWZ 280 Exploded DiagramExploded DiagramPNG
90.84 kB
