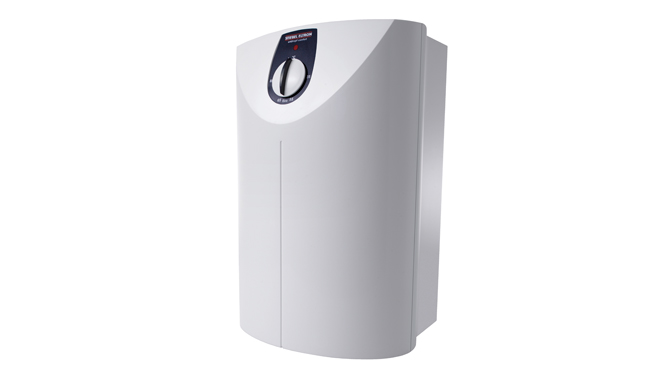

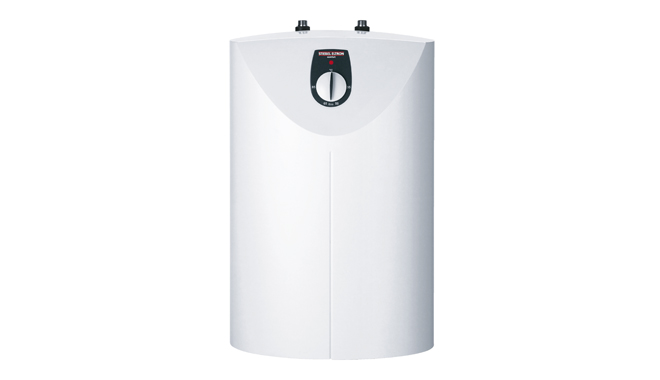

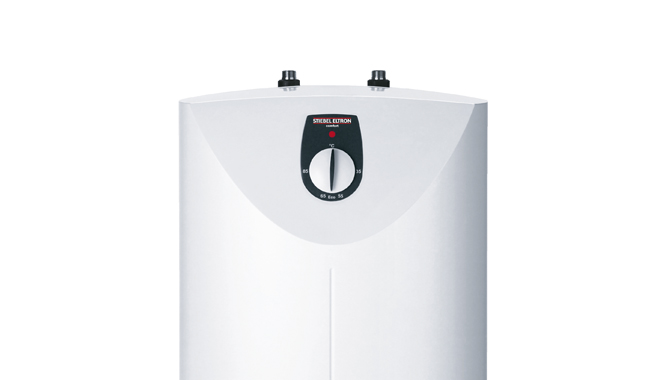

Open Vented Compact Storage Water Heater

SNU 5 / SNU 10

Replacement Product:
SNU Plus open vented water heater
SNU 5 Plus / SNU 10 Plus
  • Under sink design
  • Save energy and water through its point-of-use design
  • Must be used with specialised STIEBEL ELTRON open vented sink mixer
  • Very low energy losses
  • Easy installation
  • Plug-in appliance for easy installation
View SNU 5 Plus / SNU 10 Plus
  • SNU is made in Germany
  • Designed for single isolated sink
  • Save energy and water
  • Low minimum standby power consumption
  • To be fitted with specialised open vented tapware
Ask Quick Question

Product Overview

Save energy and water with a compact single point of use storage water heater

Made in Germany the STIEBEL ELTRON SNU 5 and SNU 10 under sink open vented water heaters deliver hot water quickly to a single sink. These point of use water heaters eliminate long runs of pipework for isolated sinks and reduce the waiting time for hot water to arrive at the outlet. They are conveniently installed directly underneath the sink and must be fitted with specialised open vented tapware.

Available at:
Or your local plumbing supply store.

Product Details

High quality design

  • Made in Germany
  • Designed for single isolated sink
  • WaterMark approved. Lic No. WMKA00301, AS3498
  • Available in 5 litre (SNU 5) or 10 litre (SNU 10) tank capacity

Energy and water saving

  • Low minimum standby power consumption

Easy installation

  • Compact space saving design
  • Installed underneath the sink for single point of use
  • 240V - three-pin power cord with earthed plug 10Amp
  • Open vented design must be fitted with specialised tapware
  • No safe tray required
  • No ventilation required

Warranty

  • 5 year full parts and labour domestic water heater warranty*

PLEASE NOTE: THE SNU WATER HEATER IS OPEN VENTED AND MUST BE INSTALLED WITH A STIEBEL ELTRON OPEN VENTED TAP (MES, MEW, OR MESG TAP). TEMPERING VALVES, WATER FILTERS ON THE TAP OR NON APPROVED AERATORS CANNOT BE FITTED TO THIS HOT WATER SYSTEM.

*Conditions apply - refer warranty policy for full details.

Technical Data

Model number SNU 5 SNU 10
Rated output (240V) 2kW 2kW
Rated current (240V) 10Amp 10Amp
Phases 1/N/PE 1/N/PE
Electrical Installation As per AS/NZS3000
Installation requirements AS/NZS3500.4.2 & local requirements
Type of installation Under sink Under sink
Max. tapware permissible pressure 500kPa 500kPa
Temperature adjustment Up to 85°C Up to 85°C
Tank capacity 5 Litres 10 Litres
Mixed water volume at 40°C from single draw off 10 Litres 19 Litres
Standby energy consumption / 24 hours at 65°C 0.2kWh 0.32kWh
IP Rating IP24 IP24
Height 421mm 503mm
Width 263mm 295mm
Depth 230mm 275mm
Weight (filled with water) 8.1kg 15kg
Colour White White
Approvals WaterMark Lic No. WMKA00301, AS3498
For one draw off point Yes Yes
ECO setting 60°C 60°C
Please note: The SNU under sink single point of use water heater is open vented and must be installed with a STIEBEL ELTRON open vented sink mixer.

Downloads

File Category Type Download
SNU Data SheetData SheetPDF
877.86 kB
SNU 10 Operation and Installation GuideOperation and Installation GuidePDF
12.56 MB
SNU 5 Operation and Installation GuideOperation and Installation GuidePDF
16.55 MB
SNU 5 / SNU 10 WarrantyWarrantyPDF
192.25 kB
Revit file of STIEBEL ELTRON's SNUTechnical DrawingRFA
408.00 kB
STIEBEL ELTRON Tech Line Drawing SNU10Technical DrawingJPG
800.31 kB
STIEBEL ELTRON Tech Line Drawing SNU5Technical DrawingJPG
812.23 kB
STIEBEL ELTRON Exploded Diagram SNUExploded DiagramPDF
159.15 kB
Model & Serial Number LocationSerial Number LocationPDF
229.64 kB

FAQ

1. Can I install the SNU water heater with my existing sink mixer?

No, the SNU water heaters are open vented and require a specialised open vented sink mixer.

2. My SNU 10 drips water from the spout, is this normal?

Yes,as hot water heats up and expands it will drip from the tap. This only occurs while heating on the 10 litre unit. The SNU 5, on the other hand, incorporates a Drip-Stop function so the open vented taps fitted to the SNU 5 will not drip when heating.

3. Can I get an SNU water heater that does not drip from the sink mixer when heating?

Yes, the SNU 5 incorporates an Anti-Drip feature. The open vented tap will not drip while heating. This feature is not available for the 10 litre unit.

4. Can I connect two taps to the SNU open vented water heater?

No, the SNU water heater is designed as a single point of use water heater and can only be operated with one open vented sink mixer.

5. How can I tell what size SNU water heater I have?

On top of the water heater between the inlet and outlet, the sticker will advise the size SNU 5 or SNU 10.  Within the downloads section of the SNU, you can download a pdf showing you exactly where and how to locate this sticker.

6. Do these water heaters create hot water that is hot enough to make tea and coffee?

No, the SNU is designed to provide hot and cold water to a sink. These units are not a boiling or chilled system.

7. If I run out of hot water how long will it take for the SNU 10 to have another 10 litres of hot water available?

The SNU recovers at approximately 1 litre a minute.

8. I want to wash dishes in the sink, what size SNU do I need?

This will be dependant on the sink size, however, we recommend the SNU 10 if a larger volume of hot water is required.

9. Where can I purchase the SNU water heater from?

The SNU is available from all leading plumbing stores.
