VRC-W 450 / VRC-W 600
- Centralised ventilation for optimum air quality
- Suitable for outside temperatures ranging from -20°C to +50°C
- Improve air quality with optional filter upgrades, including pollen and fine dust filters
- Convenient operation with WiFi connectivity
- Elegant design
- Easy-to-clean and replace filters, ensuring optimal hygiene
- Efficient operation with balanced air volume flow
- Innovative preheater ensures outside air temperature balance during winter months
Product Overview
Enjoy Fresh, Healthy Air with Style and Comfort

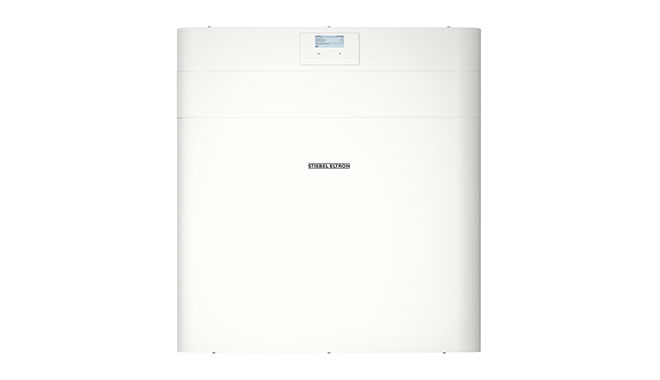

Are you seeking a sleek and efficient solution to bring fresh, healthy air into your home or commercial space? Meet the VRC-W Premium—a cutting-edge ventilation system that excels in efficiency, comfort, and modern design. Quiet and compact, this device is wall-mounted, making it ideal for single-family homes, apartments, and small commercial properties.
Experience Advanced Features
The VRC-W Premium is designed with your convenience in mind, offering a range of features, including programmable weekly schedules and support for eleven languages. But that’s just the beginning. With an integrated heat exchanger, it not only supplies fresh air but also recovers heat from exhaust air to enhance your heating system. Additionally, it offers passive cooling capabilities, allowing you to effortlessly maintain the perfect indoor climate.
Product Details
Application
- This centralised ventilation unit is suitable for use in family homes, apartments, and small commercial properties.
- It is distinguished by its high airflow rate and heat recovery capabilities for efficient ventilation.
Convenience Features

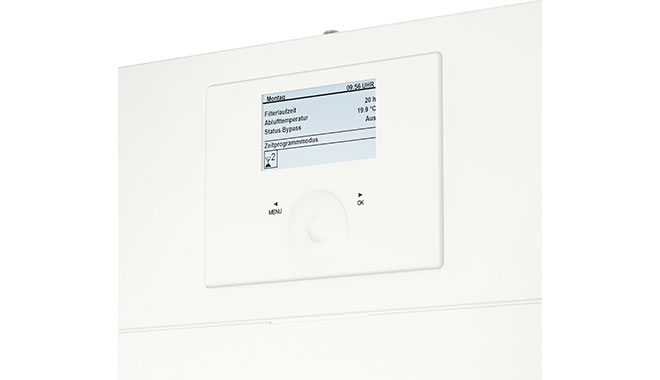

- The ventilation unit boasts a compact, aesthetic design with an ergonomic user interface. It includes a remote control with a matrix display, supports eleven languages, and features a seven-day program.
- Central control, WLAN, app, and KNX options are available.
- Electric preheating via a high-performance heating coil.
- Energy savings thanks to a bypass duct with a damper in the supply air line for passive cooling and heating.
- Multiple sensors for temperature, humidity, CO2/VOC for zone control, and PM2.5 monitoring.
- Separate filter cover with easy filter changes via a combi filter cassette. HEPA filter against COVID-19 and PM2.5 available as an accessory.
- Double-skin, powder-coated sheet steel casing.
Efficiency
- High thermal efficiency and moisture recovery, with energy savings in both cooling and heating functions.
- High-efficiency cross-countercurrent heat exchanger.
- High electrical efficiency (SPI) of the integral EC fan with constant airflow rate control.
Installation

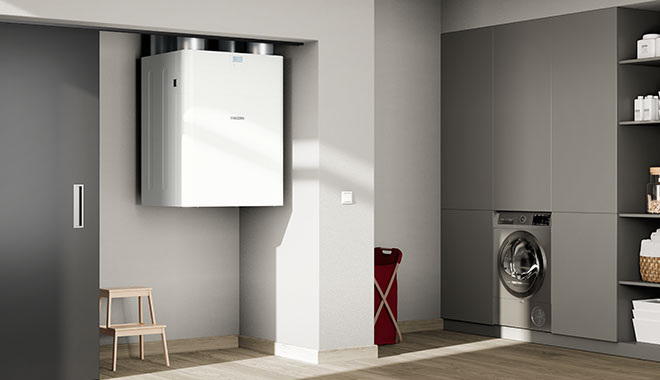

- Installation is suitable for dwellings, utility rooms, basements, etc. The air connections are located at the top of the appliance, and the electrical connection panel can be easily accessed without opening the appliance.
- Easy maintenance: Heat exchangers and filters can be serviced without tools.
Technical Data
| Model number | VRC-W 450 | VRC-W 600 |
| Article no. | 204940 | 204714 |
| Degree of heat provision up to | 89.7% | 87.6% |
| Air volume flow | 110-450 m³/h | 150-600 m³/h |
| Filter class | EPM1 ≥50% (F7) | ISO COURSE ≥65% (G4) | EPM1 ≥50% (F7) | ISO COURSE ≥65% (G4) |
| Sound power level (EN 12102) | 49 dB(A) | 54 dB(A) |
| Height | 975 mm | 975 mm |
| Width | 740 mm | 740 mm |
| Depth | 655 mm | 655 mm |
| Air connection diameter | 180 mm | 180 mm |
| Weight | 58.6 kg | 58.6 kg |
| Nominal voltage | 230 V | 230 V |
| Specific energy consumption under average climate conditions for time control | -40.35 kWh/(m²a) | -38.30 kWh/(m²a) |
| Energy efficiency class for average climate conditions for time control | A | A |
| Energy efficiency class | A+ | A+ |
