WPF 20 / 27 / 35 / 40 / 52 / 66
This product is no longer available and replaced with a newer model
You can still access product information and downloads from this page.
WPE-I 33 / 44 / 59 / 87
- Geothermal hydronic heat pump for domestic or commercial applications
- 20.18 - 87 kW heating output
- Cascade up to 16 geothermal heat pumps for higher output
- Easy system control
- Quiet operation
- Geothermal hydronic heating for larger complexes
- 21.5 – 67.1 kW heating output at B0/W35
- Stackable design to maximise available space
- Cascade control for high output requirements
- High reliability through robust single compressor design
- Integrated heat and electricity meters
- Extremely quiet operation
Product Overview

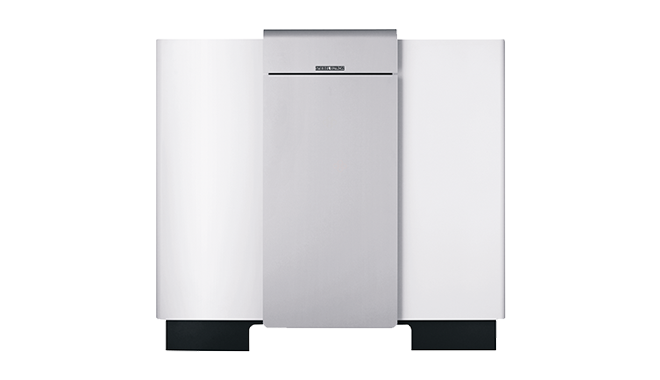

Designed for residential and commercial complexes with larger heating loads, the stackable WPF range of geothermal hydronic heat pumps are a demonstration of the advancement of heat pump technology. Featuring cascade control which allows additional units to be started dependant on peak loads. Winner of multiple design awards, the WPF 20-66 geothermal heat pumps can be stacked to save space.
Product Details
APPLICATION

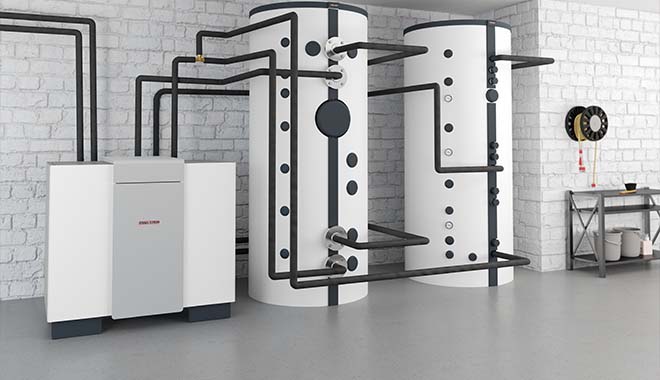

Geothermal heat pump for indoor or weatherproof outdoor installation. Suitable for multi-family houses and commercial applications due to up to 66 kW as a single device and up to 400 kW in a cascade. Optimized for space-saving set-up thanks to the stackability of 2 devices on top of each other.
EQUIPMENT / COMFORT
In order to minimize the transmission of structure-borne noise to the building, the cooling circuit is located on a vibration-decoupled base plate. The heat pump controller (accessory) in conjunction with the ISG (optional accessory) enables the system to be controlled in the home network or with a mobile device. With integrated heat and electricity metering via refrigeration circuit data. If necessary, the integration into a building automation can be realized via a software extension.
EFFICIENCY
The heat pump unit is equipped with a scroll compressor with start-up relief and optimized heat exchangers to increase efficiency.
INSTALLATION
Internal pressure hoses enable a direct hydraulic connection to the heating and brine circuits. For the introduction in confined spaces, it is possible to reduce the basic device for transport to a width of <800 mm. There are also attachment points for crane lugs on the basic device.
Technical Data
| Model | WPF 20 | WPF 27 | WPF 35 | WPF 40 | WPF 52 | WPF 66 |
| Output at B0/W35 (EN 14511) | 21.5 kW | 29.69 kW | 38.04 kW | 43.1 kW | 55.83 kW | 67.10 kW |
| Coefficient of performance at B0/W35 (EN 14511) | 4.66 | 4.85 | 4.78 | 4.67 | 4.81 | 4.56 |
| Flow rate, heat source side | 5 m³/h | 7 m³/h | 8.8 m³/h | 10.5 m³/h | 13 m³/h | 16.1 m³/h |
| Nominal design flow rate of heating system at A-7/W35 and 7 K | 2.65 m³/h | 3.65 m³/h | 4.48 m³/h | 5.3 m³/h | 6.86 m³/h | 8.26 m³/h |
| Sound power level (EN 12102) | 54 dB(A) | 55 dB(A) | 56 dB(A) | 58 dB(A) | 58 dB(A) | 61 dB(A) |
| Sound pressure level at a distance of 1 m | 43 dB(A) | 44 dB(A) | 45 dB(A) | 47 dB(A) | 47 dB(A) | 50 dB(A) |
| Rated compressor voltage | 400 V | 400 V | 400 V | 400 V | 400 V | 400 V |
| Connections for the heating and source side | G 2 | G 2 | G 2 | G 2 | G 2 | G 2 |
| Height | 1154 mm | 1154 mm | 1154 mm | 1154 mm | 1154 mm | 1154 mm |
| Width | 1242 mm | 1242 mm | 1242 mm | 1242 mm | 1242 mm | 1242 mm |
| Depth | 860 mm | 860 mm | 860 mm | 860 mm | 860 mm | 860 mm |
| Weight | 345 kg | 367 kg | 391 kg | 415 kg | 539 kg | 655 kg |
